Command line usage#
SwarmPAL can be used directly from the command line by supplying data and process configuration YAML files.
%%bash
swarmpal --help
Usage: swarmpal [OPTIONS] COMMAND [ARGS]...
Options:
--help Show this message and exit.
Command
s:
batch Process datasets in batch mode
fac-single-sat Execute FAC single-s
atellite processor
fetch-data Fetch datasets from Vires or Hapi
last-available-time U
TC of last available data for a collection, e.g.
quicklook Create a quicklook plot if p
ossible
spacecraft List names of available spacecraft
%%bash
swarmpal batch --help
Usage: swarmpal batch [OPTIONS] CONFIG OUT
Run SwarmPAL in batch mode. The datasets and processes
need to be specified
in YAML file and passed as the first CONFIG argument. The results are
writ
ten to NetCDF files specified by OUT.
Options:
--time TEXT... Override the start and end times i
n the configuration file
--overwrite Overwrite output file if it already exists
--help
Show this message and exit.
Flexible operation#
The CLI can be used in different ways:
A) Fetch data from VirES/HAPI and apply a process
Generate output data with no interim files
B) Fetch data from VirES/HAPI, store it, then apply a process separately
Useful if you want to separate steps, e.g. gather all in the inputs first, then separately apply the processing which occurs locally (where you might iterate to experiment with options, or run the processes in parallel)
C) Use local data and apply a process
Useful for working with data not available via VirES/HAPI
A) Fetch data from VirES and apply a process#
Write a configuration file like the following (note it has two parts, data_params and process_params)
data_params:
- provider: vires
collection: SW_OPER_MAGA_LR_1B
measurements:
- B_NEC
models:
- CHAOS
start_time: "2025-01-01T00:00:00"
end_time: "2025-01-02T00:00:00"
server_url: https://vires.services/ows
options:
asynchronous: false
show_progress: false
process_params:
- process_name: FAC_single_sat
Provide swarmpal batch with the configuration file and desired output file name
%%bash
swarmpal batch --overwrite configs/FAC_fetch_and_process.yml temp/FAC_processed_A.nc

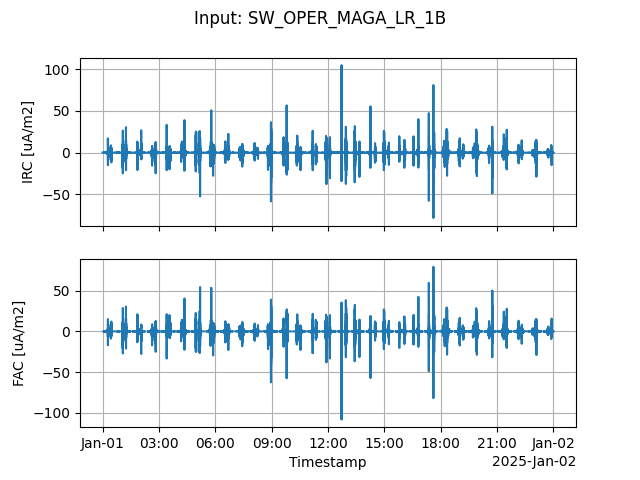

The output data has been saved in the file FAC_processed_A.nc which we might then interrogate in an interactive session, or can generate a quicklook:
%%bash
swarmpal quicklook --overwrite temp/FAC_processed_A.nc temp/FAC_quicklook_A.png
B) Fetch data from VirES, store it, then apply a process separately#
Write a configuration file like the following that only specifies the data_params
data_params:
- provider: vires
collection: SW_OPER_MAGA_LR_1B
measurements:
- B_NEC
models:
- CHAOS
start_time: "2025-01-01T00:00:00"
end_time: "2025-01-02T00:00:00"
server_url: https://vires.services/ows
options:
asynchronous: false
show_progress: false
In this example, we will override the start and end times using the --time option:
%%bash
swarmpal batch --overwrite --time "2025-02-02T00:00:00" "2025-02-03T00:00:00" configs/FAC_fetch_inputs.yml temp/FAC_inputs_B.nc
Note
NB: swarmpal fetch-data is identical in behaviour if there are no processes in the config file - maybe we should remove it to avoid confusion about its purpose, since there is no matching “apply-process” command.
The inputs have been retrieved from VirES and stored as FAC_inputs_B.nc. Next we can apply the process:
data_params:
- provider: file
filename: "temp/FAC_inputs_B.nc"
filetype: "netcdf"
dataset: "SW_OPER_MAGA_LR_1B"
process_params:
- process_name: FAC_single_sat
dataset: "SW_OPER_MAGA_LR_1B"
model_varname: "B_NEC_CHAOS"
measurement_varname: "B_NEC"
%%bash
swarmpal batch --overwrite configs/FAC_apply_process.yml temp/FAC_processed_B.nc

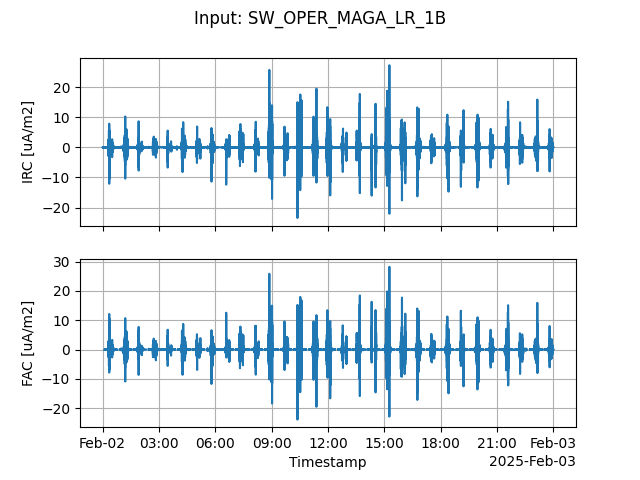

swarmpal quicklook --overwrite temp/FAC_processed_B.nc temp/FAC_quicklook_B.png
WARNING:root:Missing auxiliaries: {'Flags_F', 'Flags_B', 'Flags_q'}
C) Use local data and apply a process#
data_params:
- provider: file
dataset: "SW_OPER_MAGA_LR_1B"
filename: "SW_OPER_MAGA_LR_1B_20250410T000000_20250410T235959_0606_MDR_MAG_LR.cdf"
filetype: "cdf"
process_params:
- process_name: EXP_LocalForwardMagneticModel
dataset: "SW_OPER_MAGA_LR_1B"
model_descriptor: "CHAOS-Core"
- process_name: FAC_single_sat
dataset: SW_OPER_MAGA_LR_1B
model_varname: B_NEC_CHAOS-Core
measurement_varname: B_NEC
time_jump_limit: 1
Note that in this case, we also run an experimental process EXP_LocalForwardMagneticModel to provide the CHAOS model predictions, computed locally (whereas before they were computed on VirES).
(This example usage is skipped since you must supply the CDF file)
# %%bash
# swarmpal batch --overwrite configs/FAC_apply_process_local_file.yml temp/FAC_processed_C.nc
# swarmpal quicklook --overwrite temp/FAC_processed_C.nc temp/FAC_quicklook_C.png
# display(Image('temp/FAC_quicklook_C.png'))
Example: TFA#
---
data_params:
- provider: vires
collection: SW_OPER_MAGA_LR_1B
measurements:
- B_NEC
models:
- Model='CHAOS-Core'+'CHAOS-Static'
auxiliaries:
- QDLat
- MLT
start_time: '2025-10-05T00:00:00'
end_time: '2025-10-05T01:00:00'
pad_times:
- 03:00:00
- 03:00:00
server_url: https://vires.services/ows
process_params:
- process_name: TFA_Preprocess
dataset: SW_OPER_MAGA_LR_1B
active_variable: B_NEC
active_component: 2
sampling_rate: 1.0
remove_model: false
- process_name: TFA_Clean
window_size: 300
method: iqr
multiplier: 0.5
- process_name: TFA_Filter
cutoff_frequency: 0.02
- process_name: TFA_Wavelet
min_frequency: 0.02
max_frequency: 0.1
dj: 0.1
%%bash
swarmpal batch --overwrite configs/TFA.yml TFA_processed.nc

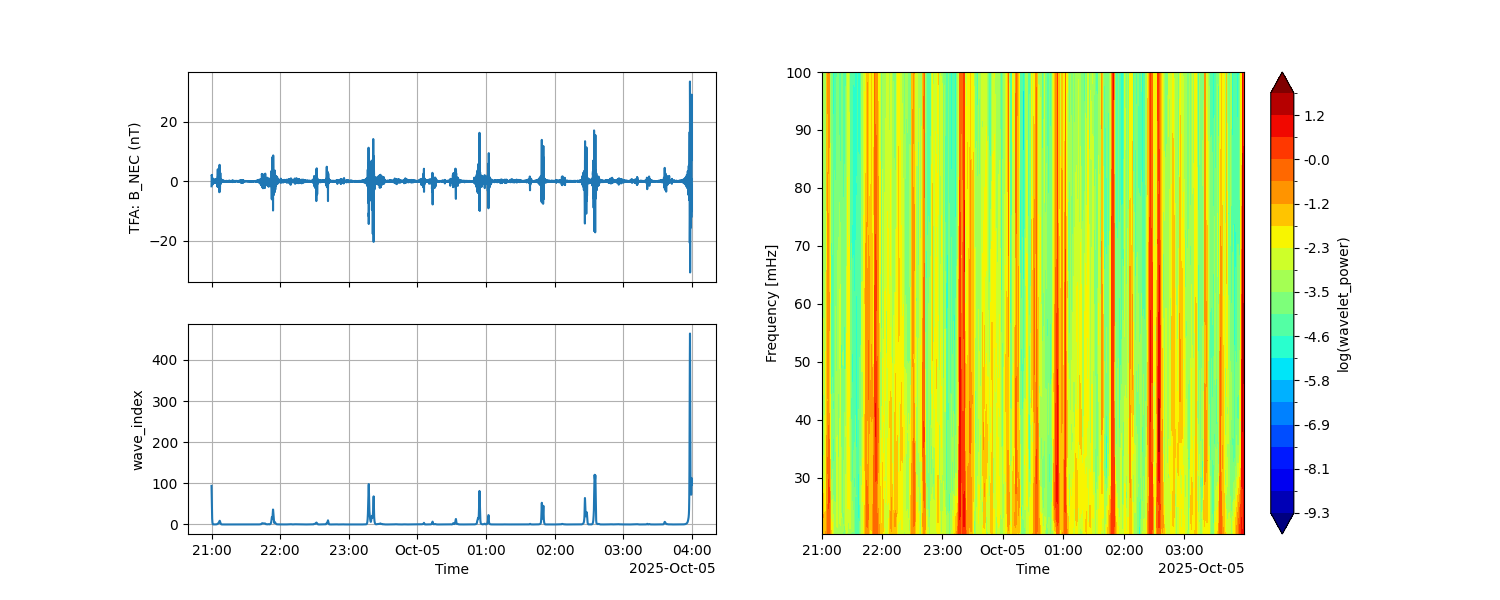

swarmpal quicklook --overwrite TFA_processed.nc temp/TFA_quicklook.png
Skipping QDLat: not available in data
Skipping MLT: not available in data
Skipping QDLat: not available in data
Skipping MLT: not available in data
Warning
It looks like auxiliaries are not being included when we specify them in the config file
Example: DSECS#
data_params:
- provider: vires
collection: SW_OPER_MAGA_LR_1B
measurements:
- B_NEC
models:
- "Model = CHAOS"
auxiliaries:
- QDLat
start_time: "2016-03-18T11:00:00"
end_time: "2016-03-18T14:00:00"
server_url: https://vires.services/ows
options:
asynchronous: false
show_progress: false
- provider: vires
collection: SW_OPER_MAGC_LR_1B
measurements:
- B_NEC
models:
- "Model = CHAOS"
auxiliaries:
- QDLat
start_time: "2016-03-18T11:00:00"
end_time: "2016-03-18T14:00:00"
server_url: https://vires.services/ows
options:
asynchronous: false
show_progress: false
process_params:
- process_name: DSECS_Preprocess
- process_name: DSECS_Analysis
# %%bash
# swarmpal batch --overwrite configs/DSECS.yml temp/DSECS_processed.nc
# swarmpal quicklook --overwrite temp/DSECS_processed.nc temp/DSECS_quicklook.png
# display(Image("temp/DSECS_quicklook.png"))
To separate data fetching from process application, you could use:
swarmpal fetch-data configs/DSECS.yml temp/DSECS_inputs.nc
Then:
swarmpal batch DSECS_apply_process.yml temp/DSECS_output.nc
with a configuration file like:
data_params:
- provider: file
filename: "temp/DSECS_inputs.nc"
filetype: "netcdf"
dataset: "SW_OPER_MAGA_LR_1B"
- provider: file
filename: "temp/DSECS_inputs.nc"
filetype: "netcdf"
dataset: "SW_OPER_MAGC_LR_1B"
process_params:
- process_name: DSECS_Preprocess
- process_name: DSECS_Analysis
(Note that both input datasets, MAGA and MAGC, are stored in one .nc file)
